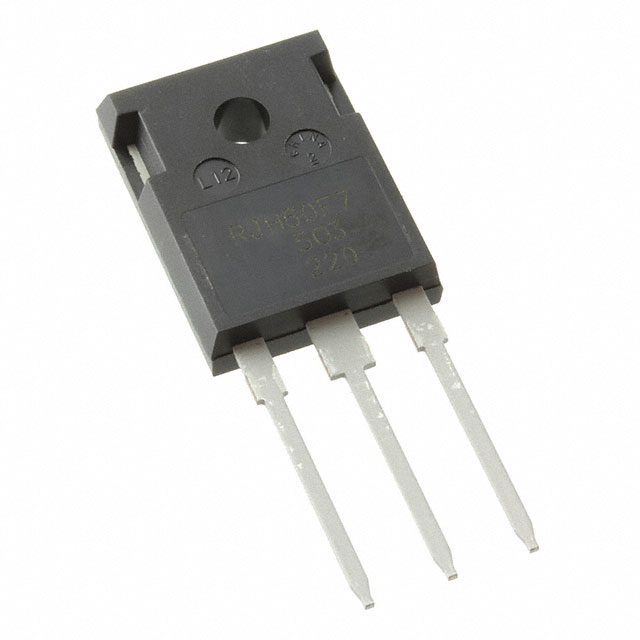

RJH60D7BDPQ-E0#T2
IGBT TRENCH 600V 90A TO247
part Number：
RJH60D7BDPQ-E0#T2
manufacturer：
Intersil (Renesas Electronics Corporation)
category：
Discrete Semiconductor Products >
Transistors >
IGBTs >
Single IGBTs >
describe：
IGBT TRENCH 600V 90A TO247
RoHS：
YES
RJH60D7BDPQ-E0#T2 specifications
Mounting Type：
Through Hole
Power - Max：
300 W
Operating Temperature：
150°C (TJ)
IGBT Type：
Trench
Reverse Recovery Time (trr)：
25 ns
Voltage - Collector Emitter Breakdown (Max)：
600 V
Input Type：
Standard
Package / Case：
TO-247-3
Supplier Device Package：
TO-247
Current - Collector (Ic) (Max)：
90 A
Vce(on) (Max) @ Vge, Ic：
2.2V @ 15V, 50A
Gate Charge：
125 nC
Test Condition：
300V, 50A, 5Ohm, 15V
Td (on/off) @ 25°C：
60ns/180ns
Switching Energy：
700µJ (on), 1.4mJ (off)
