Electronic Components Distribution
AUIRFU4292

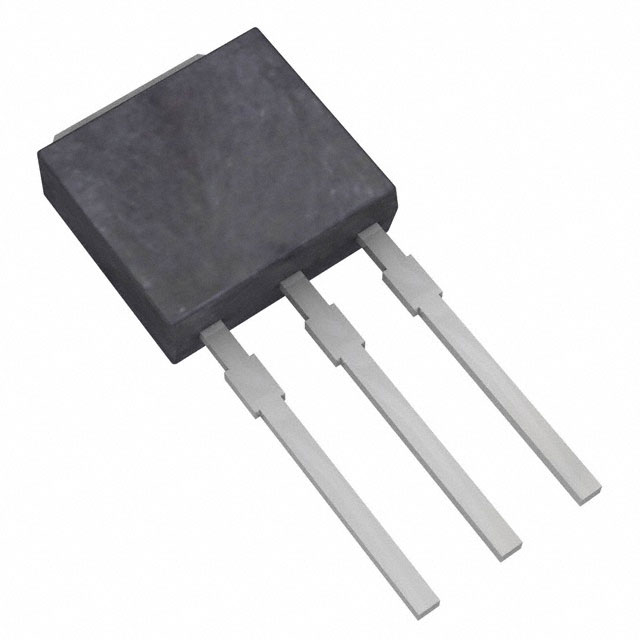

MOSFET N CH 250V 9.3A IPAK
part Number：
AUIRFU4292
manufacturer：
IR (Infineon Technologies)
category：
Discrete Semiconductor Products >
Transistors >
FETs, MOSFETs >
Single FETs, MOSFETs >
describe：
MOSFET N CH 250V 9.3A IPAK
RoHS：
YES
AUIRFU4292 specifications
Mounting Type：
Through Hole
FET Type：
N-Channel
Technology：
MOSFET (Metal Oxide)
Vgs (Max)：
±20V
Drive Voltage (Max Rds On, Min Rds On)：
10V
Operating Temperature：
-55°C ~ 175°C (TJ)
Package / Case：
TO-251-3 Short Leads, IPak, TO-251AA
Drain to Source Voltage (Vdss)：
250 V
Supplier Device Package：
IPAK
Gate Charge (Qg) (Max) @ Vgs：
20 nC @ 10 V
Power Dissipation (Max)：
100W (Tc)
Current - Continuous Drain (Id) @ 25°C：
9.3A (Tc)
Rds On (Max) @ Id, Vgs：
345mOhm @ 5.6A, 10V
Vgs(th) (Max) @ Id：
5V @ 50µA
Input Capacitance (Ciss) (Max) @ Vds：
705 pF @ 25 V
