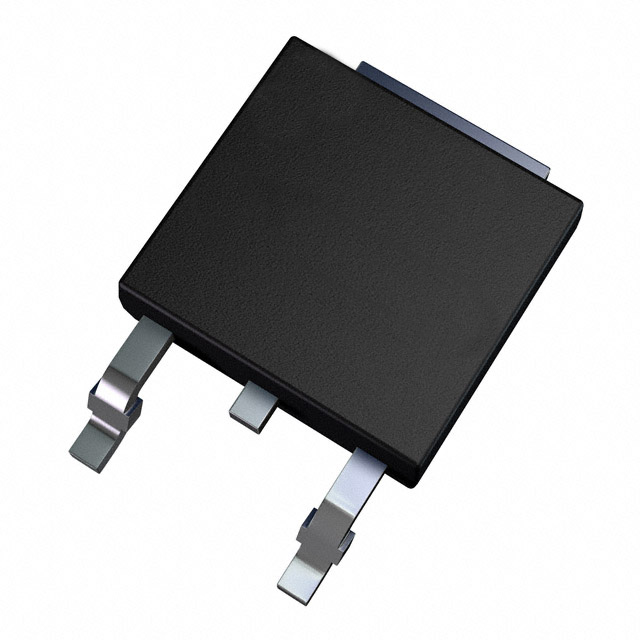

STD9NM40N
MOSFET N-CH 400V 5.6A DPAK
part Number：
STD9NM40N
manufacturer：
STMicroelectronics
category：
Discrete Semiconductor Products >
Transistors >
FETs, MOSFETs >
Single FETs, MOSFETs >
describe：
MOSFET N-CH 400V 5.6A DPAK
RoHS：
YES
STD9NM40N specifications
Mounting Type：
Surface Mount
Operating Temperature：
150°C (TJ)
FET Type：
N-Channel
Technology：
MOSFET (Metal Oxide)
Drive Voltage (Max Rds On, Min Rds On)：
10V
Package / Case：
TO-252-3, DPAK (2 Leads + Tab), SC-63
Supplier Device Package：
DPAK
Vgs(th) (Max) @ Id：
4V @ 250µA
Drain to Source Voltage (Vdss)：
400 V
Vgs (Max)：
±25V
Current - Continuous Drain (Id) @ 25°C：
5.6A (Tc)
Power Dissipation (Max)：
60W (Tc)
Gate Charge (Qg) (Max) @ Vgs：
14 nC @ 10 V
Rds On (Max) @ Id, Vgs：
790mOhm @ 2.5A, 10V
Input Capacitance (Ciss) (Max) @ Vds：
365 pF @ 50 V
