UUG1C472MNJ1MS

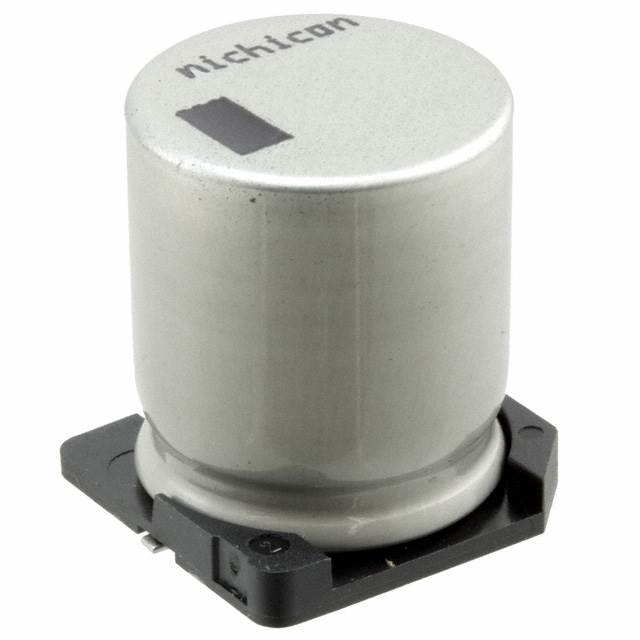

CAP ALUM 4700UF 20% 16V SMD
part Number：
UUG1C472MNJ1MS
Alternative Model：
UUG1C472MNQ1ZD
manufacturer：
Nichicon
category：
Capacitors >
Aluminum Electrolytic Capacitors >
describe：
CAP ALUM 4700UF 20% 16V SMD
RoHS：
YES
UUG1C472MNJ1MS specifications
Operating Temperature：
-40°C ~ 85°C
Mounting Type：
Surface Mount
Height - Seated (Max)：
0.886" (22.50mm)
Size / Dimension：
0.709" Dia (18.00mm)
Applications：
General Purpose
Tolerance：
±20%
Ratings：
AEC-Q200
Package / Case：
Radial, Can - SMD
Voltage - Rated：
16 V
Polarization：
Polar
Lifetime @ Temp.：
2000 Hrs @ 85°C
Capacitance：
4700 µF
Surface Mount Land Size：
0.752" L x 0.752" W (19.10mm x 19.10mm)
Ripple Current @ Low Frequency：
1.75 A @ 120 Hz
Ripple Current @ High Frequency：
2.0125 A @ 10 kHz
