Electronic Components Distribution

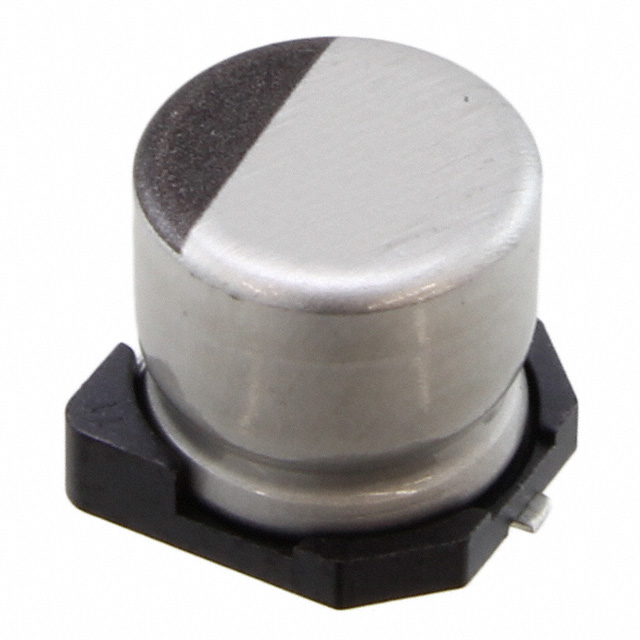

UCZ1C470MCL1GS
CAP ALUM 47UF 20% 16V SMD
part Number：
UCZ1C470MCL1GS
manufacturer：
Nichicon
category：
Capacitors >
Aluminum Electrolytic Capacitors >
describe：
CAP ALUM 47UF 20% 16V SMD
RoHS：
YES
UCZ1C470MCL1GS specifications
Mounting Type：
Surface Mount
Height - Seated (Max)：
0.240" (6.10mm)
Operating Temperature：
-40°C ~ 125°C
Applications：
General Purpose
Tolerance：
±20%
Ratings：
AEC-Q200
Package / Case：
Radial, Can - SMD
Voltage - Rated：
16 V
Capacitance：
47 µF
Polarization：
Polar
Lifetime @ Temp.：
1000 Hrs @ 125°C
Size / Dimension：
0.248" Dia (6.30mm)
Surface Mount Land Size：
0.260" L x 0.260" W (6.60mm x 6.60mm)
ESR (Equivalent Series Resistance)：
1.6Ohm
Ripple Current @ Low Frequency：
34.5 mA @ 120 Hz
