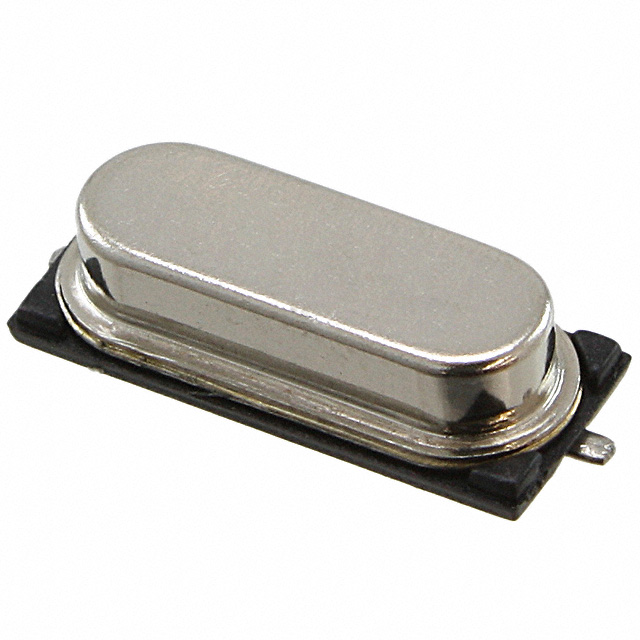

CSM4Z-A2B3C3-40-25.0D18-F
CRYSTAL 25.0000MHZ 18PF SMD
part Number：
CSM4Z-A2B3C3-40-25.0D18-F
Alternative Model：
JK0-0136NL , S25FL256SAGNFI003 , BNX012-01 , MPZ1608S221ATA00 , 1N4148WS-HF , LTM4637IY , 150080BS75000 , 0050362462 , MM3Z2V7B , NDT3055L , 0022112032 , 2007492-5 , BLM18KG260TN1D , SIT5021AI-2DE-33N-156.250000X , ADCLK846BCPZ
manufacturer：
Cardinal Components
category：
Crystals, Oscillators, Resonators >
Crystals >
describe：
CRYSTAL 25.0000MHZ 18PF SMD
RoHS：
YES
CSM4Z-A2B3C3-40-25.0D18-F specifications
Operating Temperature：
-40°C ~ 85°C
Mounting Type：
Surface Mount
Height - Seated (Max)：
0.138" (3.50mm)
Type：
MHz Crystal
Load Capacitance：
18pF
Operating Mode：
Fundamental
ESR (Equivalent Series Resistance)：
40 Ohms
Frequency Tolerance：
±30ppm
Frequency Stability：
±30ppm
Frequency：
25 MHz
Size / Dimension：
0.449" L x 0.185" W (11.40mm x 4.70mm)
Package / Case：
HC-49S
