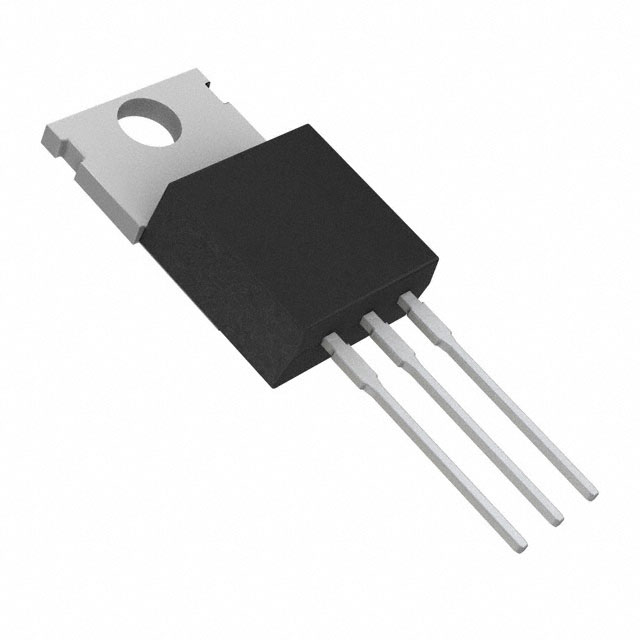

BD649-S
TRANS NPN DARL 100V 8A TO220
part Number：
BD649-S
Alternative Model：
BDX53C , BDX54C
manufacturer：
J.W. Miller / Bourns
category：
Discrete Semiconductor Products >
Transistors >
Bipolar (BJT) >
Single Bipolar Transistors >
describe：
TRANS NPN DARL 100V 8A TO220
RoHS：
YES
BD649-S specifications
Mounting Type：
Through Hole
Power - Max：
2 W
Package / Case：
TO-220-3
Transistor Type：
NPN - Darlington
Voltage - Collector Emitter Breakdown (Max)：
100 V
Operating Temperature：
-65°C ~ 150°C (TJ)
Current - Collector (Ic) (Max)：
8 A
Supplier Device Package：
TO-220
Current - Collector Cutoff (Max)：
500µA
DC Current Gain (hFE) (Min) @ Ic, Vce：
750 @ 3A, 3V
Vce Saturation (Max) @ Ib, Ic：
2.5V @ 50mA, 5A
