Electronic Components Distribution

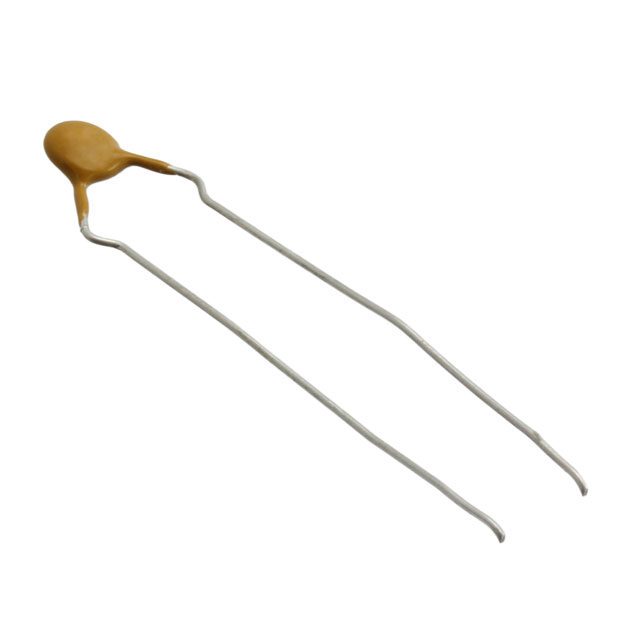

MF-R005-2
PTC RESET FUSE 60V 50MA RADIAL
part Number：
MF-R005-2
Alternative Model：
MF-R005-0-99 , MF-R005-AP , MF-R005-0 , MF-R005-2-99 , MF-R005-AP-99 , MF-R005-0 , RXEF005
manufacturer：
J.W. Miller / Bourns
category：
Circuit Protection >
PTC Resettable Fuses >
describe：
PTC RESET FUSE 60V 50MA RADIAL
RoHS：
YES
MF-R005-2 specifications
Operating Temperature：
-40°C ~ 85°C
Mounting Type：
Through Hole
Height - Seated (Max)：
0.327" (8.30mm)
Current - Hold (Ih) (Max)：
50 mA
Approval Agency：
cURus, TUV
Package / Case：
Radial, Disc
Lead Spacing：
0.201" (5.10mm)
Type：
Polymeric
Current - Max：
40 A
Voltage - Max：
60V
Time to Trip：
5 s
Current - Trip (It)：
100 mA
Resistance - Post Trip (R1) (Max)：
22 Ohms
Resistance - Initial (Ri) (Min)：
7.3 Ohms
Size / Dimension：
0.315" Dia x 0.122" T (8.00mm x 3.10mm)
