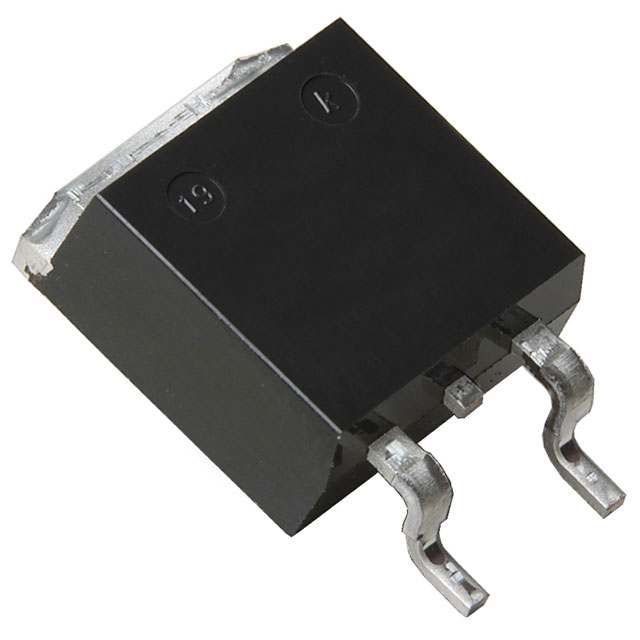

BUK764R0-40E,118
MOSFET N-CH 40V 75A D2PAK
part Number：
BUK764R0-40E,118
manufacturer：
Nexperia
category：
Discrete Semiconductor Products >
Transistors >
FETs, MOSFETs >
Single FETs, MOSFETs >
describe：
MOSFET N-CH 40V 75A D2PAK
RoHS：
YES
BUK764R0-40E,118 specifications
Mounting Type：
Surface Mount
Grade：
Automotive
FET Type：
N-Channel
Technology：
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：
40 V
Vgs (Max)：
±20V
Drive Voltage (Max Rds On, Min Rds On)：
10V
Operating Temperature：
-55°C ~ 175°C (TJ)
Qualification：
AEC-Q101
Package / Case：
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Supplier Device Package：
D2PAK
Current - Continuous Drain (Id) @ 25°C：
75A (Tc)
Vgs(th) (Max) @ Id：
4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs：
54 nC @ 10 V
Rds On (Max) @ Id, Vgs：
4mOhm @ 25A, 10V
Power Dissipation (Max)：
182W (Tc)
Input Capacitance (Ciss) (Max) @ Vds：
4405 pF @ 25 V
