Electronic Components Distribution

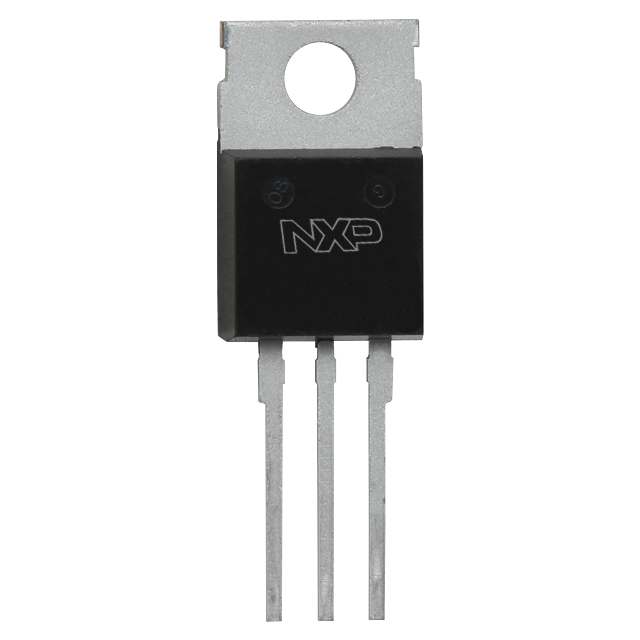

BUK752R7-60E,127
MOSFET N-CH 60V 120A TO220AB
part Number：
BUK752R7-60E,127
manufacturer：
NXP Semiconductors
category：
Discrete Semiconductor Products >
Transistors >
FETs, MOSFETs >
Single FETs, MOSFETs >
describe：
MOSFET N-CH 60V 120A TO220AB
RoHS：
YES
BUK752R7-60E,127 specifications
Mounting Type：
Through Hole
FET Type：
N-Channel
Technology：
MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C：
120A (Tc)
Drain to Source Voltage (Vdss)：
60 V
Vgs (Max)：
±20V
Drive Voltage (Max Rds On, Min Rds On)：
10V
Supplier Device Package：
TO-220AB
Package / Case：
TO-220-3
Operating Temperature：
-55°C ~ 175°C (TJ)
Vgs(th) (Max) @ Id：
4V @ 1mA
Power Dissipation (Max)：
349W (Tc)
Gate Charge (Qg) (Max) @ Vgs：
158 nC @ 10 V
Rds On (Max) @ Id, Vgs：
2.6mOhm @ 25A, 10V
Input Capacitance (Ciss) (Max) @ Vds：
11180 pF @ 25 V
